Surron Storm Bee

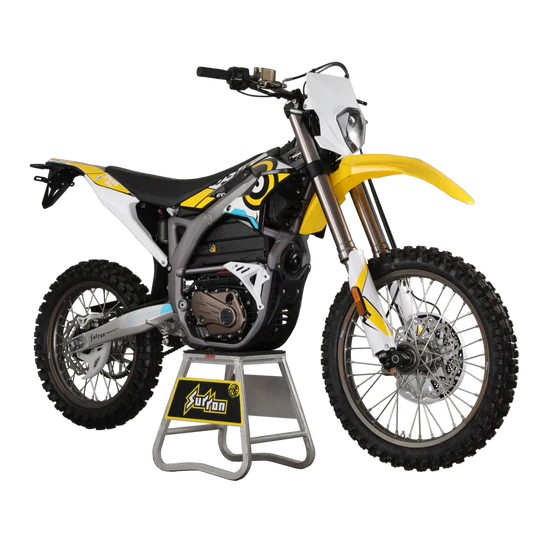

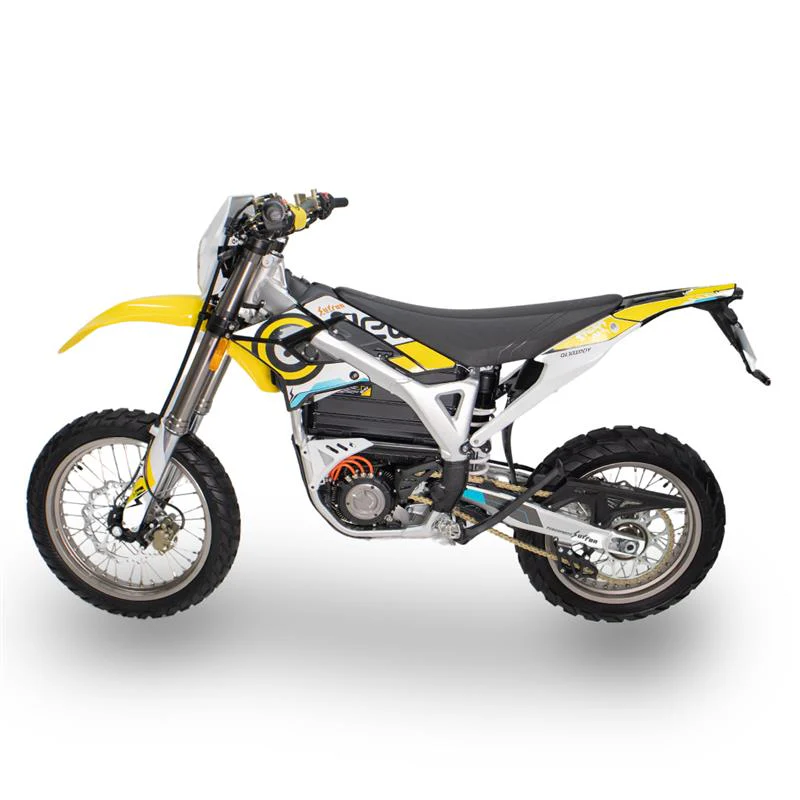

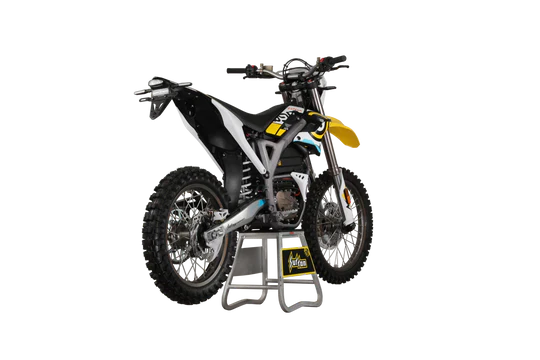

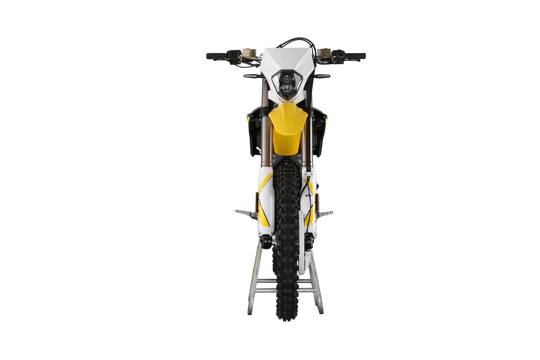

The 2023 SURRON Storm Bee

Learn about the Surron Storm Bee, the SUR-RON series’ most potent model. This bike is an actual electric enduro, weighing 130 kg overall with an air-cooled electric drive that generates 22.5 kW. It is not your typical electric motorbike. Achieve top speeds of 110 km/h and torque of over 530 Nm to accelerate from 0 to 50 km/h in 1.9 seconds.

Outstanding driving system and distinctive frame design

Riding pleasure is substantially enhanced by the Surron Storm Bee platform’s unique ergonomic motorcycle design and high-strength frame structure, which offer both stiffness and flexibility. The Storm Bee’s compact three-layer configuration of the battery, MCU, and motor reduces unsprung weight and balances it, and its 45° steering angle enhances maneuverability. The Storm Bee’s 1430 mm wheelbase provides superior stability at high speeds in addition to its outstanding mobility and off-road capabilities.

Superior functioning controller

The 150V sine wave controller that comes with the SURRON Storm Bee was created especially for the Storm Bee’s intended use. Together with numerous more sensors, including temperature sensors, the controller is protected by IP67.

lasting battery

With our powerful 104V 55 Ah battery, you have the independence you require. You can be mobile at all times with a range of about 100 kilometers and a quick 4 hours for 0% to 100% charge. Durability is ensured by lithium-ion technology, while optimal performance and safety are guaranteed by the intelligent battery management system. And with a tolerable weight of only thirty kilograms.

Technical data

Dimensions

Length / width / height: 2080 / 805 / 1240 mm
Min. ground clearance: 310 mm
Wheelbase: 1,430 mm
Empty mass (including battery): 130 KG
Max. load: 100 KG

drive

Cooling: Water-cooled BLDC (Brushless DC Motor)
Range: 100 KM
Rated continuous power: 10 kW
Maximum power: 22.5 kW
Power transmission: 530 O-ring chain

Tires & Brakes

Tire type: Front: 21″ spoke rims, 80/100-21 off-road tires, rear: 18″ spoke rims, 100/90-18 off-road tires

landing gear

Front chassis: 47 mm inverted fork, 290 mm travel, adjustable compression and rebound

Rear suspension: Fully adjustable monoshock, 290 mm travel

electronics

Charger: 85V, 12A
Charging time: 0-100% = < 4 hours.
Battery: 104 V x 55 Ah = 5,720 Wh
Assistance : ASR (Acceleration Slip Reduction, aka traction control) & BERS (Brake Energy Regenerative System)
Driving modes: Sport, Rain, Turbo, Eco, Reverse
Reverse gear: at the push of a button

Registration & driving license

Admission class: L3e-A1e
Required driving license: A1 or B196 extension
